Cabinet terms & definitions

Below are some basic definitions, if you can't find what you are looking for please e-mail us. (My Mom always said there is no silly question!)

Traditional Versus Modern Cabinets -
When a custom cabinet shop talks about Traditional versus Modern; they are talking about the box construction not the overall look of the cabinets. Doors are what most people thing about as traditional or modern, but in a custom shop, first is the box construction, then the doors.

Traditional Cabinetry-Traditional Cabinets are cabinet with a hardwood "Face Frame" . When you open the cabinet door you will see a wooden "frame" around the cabinet box.

Traditional Cabinets Doors come in a wide variety of styles. See our link to Patton Cabinet Doors for examples of traditional doors.

Face Frame – The front facing of a cabinet typically constructed of hardwood. The vertical pieces, called “stiles,” and the horizontal pieces, called “rails,” reinforce the cabinet structure and provide mounting support for doors and drawers.

European, Contemporary, Modern or Frameless Cabinets
All these mean the same thing. These are cabinets without a "Frame". Usually the doors are flat without any details.

Although........You can have combination cabinets too.

Traditional or framed cabinet boxes

Frameless or European cabinet boxes

Doors - There are so many styles of doors. Basically Modern Cabinets most often have slab or flat nothing on them doors. While Traditional Doors can come in a variety of looks. Althought you can have a "traditional, shaker, raised panel door on frameless (Modern) cabinets.

Please see Patton Cabinet Doors under link tab for examples of doors styles..

Full Extension Glides - Are glides that allow the drawer to open completely from front to back.
Ball Bearing - Are small metal balls that enable the drawers to move easily

Soft Close - Can be on both doors & drawers, they allow the door or drawer to slowly close eliminating the BANG.
Side Mounted or Undermounted - As the name implies, the glides are either attached to the bottom or the side of drawers.
Expoy Coated Slides - These glides do not have ball bearing and basically slide in and out on a plastic coating.

00°, 125°, Hinges - The degree notation on a hinge is the amount the hinge will open. A 90°hinge will open at a 90 degree angle (straight out) of the cabinet. A 125° will open 35% then that.

Concealed Hinges - Are hinges that can not be seen when the doors are closed.(We use this type - shown here)

Inset , Overlay Hinges- These hinges can not be seen when the doors are closed.

Dado - A dado is a groove in a piece of wood that allow a second piece of wood to slip in to place. The best example I can think of is a Tupperware container - the lid has a groove in it to allow the container to fit snuggly.

Butt Joint - This is when two pieces f wood are placed in a 90°angle to each other

Mitered Doors - Are doors were the wood frame mmets at a 45°angle. Just like a picture Frame.

Nailer - The strip of wood inside an upper cabinet that is used to secure the cabinet to the wall.(We use hardwood).

Toe Kicks - Are what the cabinet boxes sit on and are recessed so that your feet don't "kick" the cabinets. Look at your kitchen you'll see a space between that floor and the bottom of the cabient that is recessed. This is true in 99% of kitchens.

Toe Skins - Are used to cover the toe kicks. Ususally they will be 1/4" material that matches the cabinet. They are nailed to the toe kick to cover the kick. Most older kitchens have black toe skins.

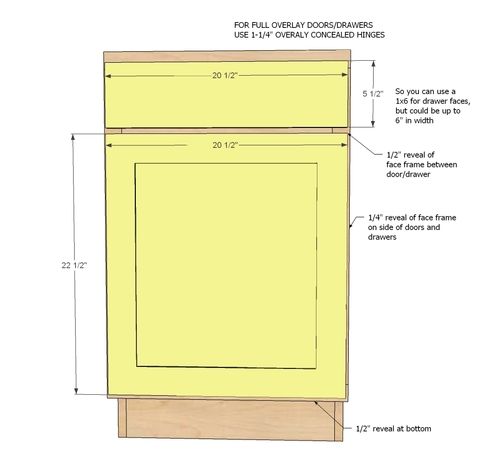

Reveals - Reveals are the vertical piece on the side of a cabinet. Since most wall are not 100% perfect. Custom cabinets are made slightly smaller then the opening, Ususally they are 1/4" to 1/2". This is not to be confused with filler pieces.

Filler Pieces - Are vertical pieces of wood that fill in the whole left by off hte shelf cabinet boxes. When cabinet are puirchased from a ":big box store" they have standard size boxes that they put together to "fill" your cabinet order. Since these are not custom cabinets, the filler strips make up the differance between the cabinets they offer and our cabinet overall measurement.

Crown Molding- This is the decorative top strip between the cabinet and the ceiling,
Knife Edge Molding - This is a piece of trim that is ususally used at he back of the cabinet to hide the gap between the back of the cabinet and the wall. One side is flat the other end has a beveal that looks like a butter knife.

Dog bowls in toe kick

Accessories – Supplemental parts of the cabinet referred to as bells and whistles. Any nonessential component such as rollouts, pullouts, tilt-outs, hardware, etc.

Angled Corner – Any cabinet type designed to fit on an end of an upper or lower cabinet creating a fixed angle.

Appliqué – A carved or etched decorative piece of wood installed on the face of cabinets. Also referred to as an on lay.

Base Cabinet – Any cabinet type designed to install directly on the floor. Some form of a top will be applied in the field, such as laminate, wood or granite.

BERP – (Base End Raised Panel) A decorative panel, usually matching the door style, designed to be applied to the side or back of a cabinet, an island for example.

Bevel – A portion of material removed from the edge of a piece of wood. This technique can be used to create a natural finger-pull such as on a beveled-edge door. Also is used to create a specific angle when two pieces of wood are joined together. For example, when two pieces have a 45° bevel they create a right angle when joined.

Blind Corner – Any cabinet type, upper or lower, designed to install into a corner of a room. Another cabinet will install directly adjacent to it hiding the blind portion. This gives access to an otherwise dead corner providing more storage.

Bumper Pads – A small spongy material usually plastic placed on any cabinet door designed to soften the noise as the door is closed.

Bun Foot – A round decorative furniture grade foot used on the bottom corners of base cabinets.

Butt Doors – Two cabinet doors covering a single opening, normally too large for one door. The edges of both doors nearly meet. The opening does not have a center mullion.

Butt Joint – A term used when the edges of two pieces of wood are joined together.

Cathedral Arch – A term used when the top cabinet door has a curved shape in the panel and frame.

Center Stile – A vertical strip of hardwood that is a component of the face frame. It usually divides a cabinet opening equally. Also referred to as a mullion.

Cherry – A moderately hardwood having a fine to medium uniform grain.
Close Grain – Having fine and closely arranged fibers or fine texture. Maple is considered to have close grain.
Color Variation – A natural variation of color inherent in any wood species. Soil type, mineral deposits, water levels, temperature and geographical location are all factors in the degree of variation.

Concealed Hinge – A term used to describe a cabinet hinge that is not visible from the outside. Referred to as a cup hinge.

Corbel – A decorative wooden bracket used as a support mechanism for mantels, bar tops, etc.

Corner Blocks – Any type of wooden, plastic or metal component used to strengthen any joint. Typical application is where face frame and end panel are joined.

Custom Cabinets Cabinets built to suit very specific needs. They are generally not limited to product lines, dimensions or design. They are typically more expensive but don’t necessarily offer the best value available in the marketplace.

Dentil Mould – A term used to describe a decorative tooth-like pattern on any trim molding.

Door Styles – A variety of cabinet doors the consumer has to choose from when designing their home. Some styles are:
•Arched raised panel (cathedral or eyebrow)
•Square raised panel
•Arched flat panel
•Square flat panel

Dovetail – A term used to describe a joining process of two pieces of material. Both pieces have wing-shaped notches that interlock. Generally known as one of the strongest joints typically used in furniture and cabinet drawers.

Drawer Face – Finished front panel of the drawer assembly. The profiles will match the door chosen.

End Panel – The panel forming the cabinet side.

Engineered Wood – A term used to describe several new types of construction material. Fiberboard, such as MDF and HDF, are more dimensionally stable than solid wood.

Exposed Hinge – A term used to describe a cabinet hinge that is visible from the outside. Some types are barrel hinges.

Fillers – Pieces of hardwood matching a chosen cabinet color. Sizes range from 1" to 6" wide and 30" to 96" long. Common use is to fill the space where a modular cabinet does not fill a specific wall dimension.

Finishes – A term for the surface treatment of a wood product to enhance the beauty of its natural wood color and grain definition. Usually applied in steps, such as stain, sealer and a clear top coat such as a catalyzed varnish.

Flute – A concave shallow groove that is routed into a wood surface. Fluting is usually applied vertically. Common use is to overlay on a cabinet stile or filler for a decorative effect.

Framed Cabinet – A traditional style of cabinetry. The box is built behind a picture frame-like structure on which the doors and drawers are applied.

Frameless Cabinets – Often referred to as European-style cabinets. Components, doors and drawers are applied to the inside of the box thus eliminating the traditional face frame.

French Leg – A furniture-grade decorative leg used on the bottom corners of base cabinets.

Full Overlay – Doors and drawers are sized large enough to cover the cabinet face with only minimal clearances between them.

Furr-Down – A box-out at the ceiling typically 12" high and 14" deep. Often used for AC ductwork. Kitchen cabinets are installed up to it creating a step effect. Also called a soffit or bulkhead.

Galley Rail – Any molding using tiny spindles to create a front retainer along a plate rail cabinet top. It gets its name because of its likeness to galley rails used on ships.

Grain Variation – A term used to describe a species of wood’s natural dissimilar grain pattern.

Hickory – A heavy, hard, strong, stiff wood with a fine uniform grain.

Hinge – A mechanical device used to attach a cabinet door to a cabinet box. There are many styles offering different applications, degree of swing and visibility.

Joint – A construction term used when two pieces of material are joined or attached together. Common types are:
•Cope and Stick
•Mortise and Tenon
•Tongue and Groove

Kerf – A saw cut that is made on the surface to relieve stress. It is used to create a curve, such as with a toe kick around a curved base cabinet.
Kiln Dry – A term used to describe the process of oven drying fresh cut lumber. The process removes excess moisture so raw lumber can be fabricated into a finished product.
Knob – A hardware item, typically round in shape, attached to doors and drawers for function and decoration.
Knot – A hard node in any wood species where a branch once grew.
Laminate – v. A term used when layers of wood are bonded together through a process of heat and pressure. n. The plastic product used to fabricate kitchen countertops.
Lazy Susan – A corner kitchen base cabinet utilizing kidney shaped shelves rotating on a center poll for easy access.
Maple – A hard closed grain, light colored wood.
MDF – (Medium Density Fiberboard) A common grade of engineered construction material.
Melamine – A slick plastic-like material used to cover a substrate of engineered wood or MDF. This material is popular because it is durable and easy to clean.
Millwork – Any type of machined woodwork.
Mineral Streak – A discoloration in any species of wood caused by mineral deposits the tree extracts from the soil. Commonly seen as a blackish-blue streak within the grain.
Miter – A joint made when two beveled surfaces form a specific angle. For example, two pieces of wood each beveled at 22 1/2° will form a 45° angle when joined together.
Modular – A standardized increment of measurements specific to a product. Modular cabinets are generally manufactured in 3" increments.
Mortise and Tenon – A specific joining technique. The mortise (groove or slot) is cut into a piece of wood. The joint is made when an opposing piece cut with a tenon (a collared protrusion) is slipped into the mortise.
Mullion Doors – Also referred to as a divided light door. The solid center panel is omitted and replaced with horizontal and vertical mullions dividing the open panel into smaller panels. Clear, smoked, bronzed, opaque or leaded glass inserts (provided by the consumer) can fill these panels for the desired effect.
Nomenclature – A string of letters and numbers used to identify specific cabinet types or accessories.
Oak – A durable open grained hardwood.
Onlay – A carved or etched decorative ornament installed on the cabinet face. Also referred to as an appliqué.
Open Grain – Large pores or course texture in grain. Oak is an example of an open-grained wood. (See Oak.)
Overlay – Decorative panels affixed to a cabinet surface or attached to the ends of upper or base cabinets.
Peninsula – Similar in design to an island except open on only three sides. Often used in “L” shaped kitchens as serving bars that separate the kitchen from the dining or family room.
Plywood – Multiple layers of wood veneer bonded by an adhesive forming panels of varying thickness.
Pull – A hardware item, usually crescent shaped, attached to doors and drawers for function and decoration.
Rabbet – A technique for joining two pieces at right angles. A portion of material is removed from the edge of one piece similar to the thickness of the other piece. When the two are attached the joint is strengthened. Also called a half-lap joint.
Racking – Generally caused by poor installation. The cabinet is twisted out of square resulting in poor door and drawer alignment and operation.
Rail – A horizontal door or cabinet frame component.
Reveal – The exposed portion of the cabinet face frame when the cabinet door and drawer are closed.
Rope Molding – A piece of molding milled to appear twisted like rope.
Rout – To drill or gouge out an area of wood for decorative or joining purposes.
RTF – (Rigid Thermo Foil) Used as a laminate in the process of fabricating a one-piece door.
Sapwood – Younger, softer outer portion of the tree trunk, just under the bark.
Scribe Allowance – Face frame extensions beyond the cabinet box for trimming to ensure proper fit.
Scribe Molding – A generic piece of molding, usually 1/4" thick and up to 1" wide, for the purpose of trimming and concealing any discrepancy where the cabinet meets a sheetrock wall.
Semi-Concealed Hinge – A term used to describe a cabinet hinge that is barely visible from the outside. Some types are called kerf or knuckle hinges.
Semi-Custom Cabinets – Cabinets built in 1/8" increments, opposed to modular cabinets built in 3" increments. Most have certain limitations in their product lines but are usually more flexible in dimension and design than a typical modular or stock cabinet product. They are typically more expensive but don’t necessarily offer the best value available in the marketplace.
Skin – A 3/16"-thick veneer panel generally used on the ends or backs of upper or base cabinets.
Soffit – A box-out at the ceiling typically 12" high and 14" deep. Often used for AC ductwork. Kitchen cabinets are installed up to it creating a step effect. Also called a fur-down or bulkhead.
Standard Overlay – A door style designed with a specific hinge type. The cabinet door overlaps the cabinet opening 1/2" on all four sides.
Stile – A vertical door or cabinet frame component.
Stretcher or Nailer – A structural component of the cabinet box. They are hidden horizontal members connecting the end panels at back of cabinet. During the installation process 1 1/2" to 3" screws are used to mount the cabinet to the wall through the stretchers.
Substrate – The original surface or the structural material beneath the layer of veneer or laminate.
TERP – (Tall End Raised Panel) A decorative panel, usually matching the door style, designed to be applied to the side or back of a cabinet, a pantry or refrigerator end panel.
Thermofoil – A 100% flexible vinyl laminate that is applied to the substrate by using an adhesive or heat and pressure.
Tilt-Out Trays – A popular accessory item ideal for storing sponges and other dishwashing supplies. They are plastic trays attached to the back of false fronts at the sink area.
Toe Kick – The recessed area at the bottom of base cabinets usually 4" high and 3" deep.
Tongue and Groove – A specific joining technique, the groove is cut into one piece of wood. The joint is made when an opposing piece cut with a tongue (a collared protrusion) is slipped into the groove.
Valance – A decorative hardwood panel installed across an open area, generally used above desks or sinks.
Varnish – A hard, transparent coating used to protect the cabinet surface.
Veneer – A thin layer of wood (1/32") of solid wood that is applied with an adhesive to a substrate.
VERP – (Vanity End Raised Panel) A decorative panel, usually matching the door style, applied to the side or back of a cabinet, a vanity end panel.
Wainscot – A wooden facing or paneling that is generally applied to a wall or large end panel of a cabinet.
Wall Cabinet – Any cabinet type designed to install at or above eye level. Common application is 18" above the kitchen base cabinets. Also referred to as an upper cabinet.
Warp – Any wood product that distorts or twists out of shape. The general cause is excessive heat or moisture.
WERP – (Wall End Raised Panel) A decorative panel, usually matching the door style, applied to the side or back of an upper cabinet.
